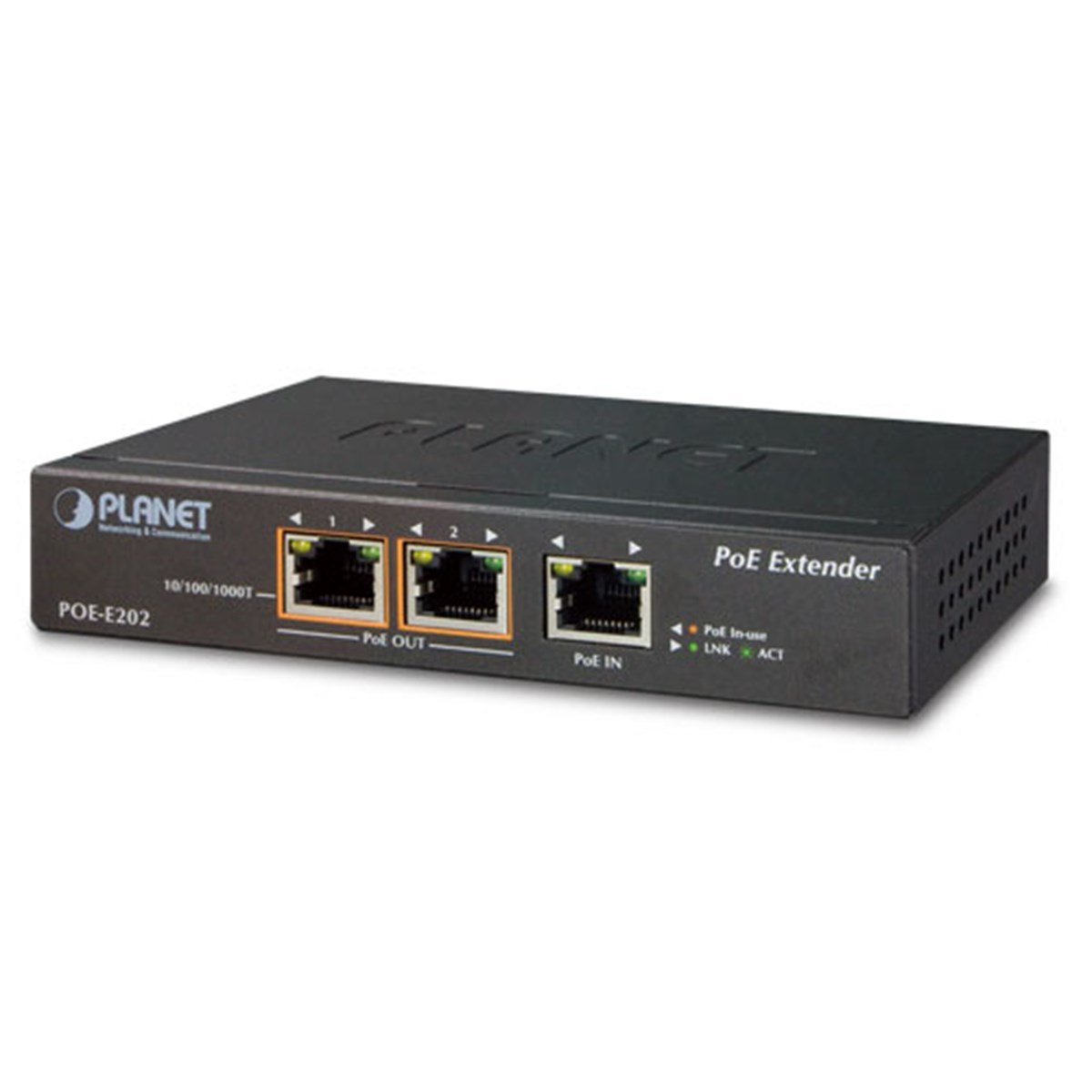

1-port 802.3at PoE+ <-> 2-port 802.3af/at Gigabit PoE+ Sinyal Uzatma Cihazı<br> 1-port 802.3at PoE+ <-> 2-port 802.3af/at Gigabit PoE+ Extender
Marka : Planet

1-port 802.3at PoE+ <-> 2-port 802.3af/at Gigabit PoE+ Sinyal Uzatma Cihazı<br> 1-port 802.3at PoE+ <-> 2-port 802.3af/at Gigabit PoE+ Extender

(PL-POE-E202)
0.0
Toplam Stok Adedi : 1
1-port 802.3at PoE+ <-> 2-port 802.3af/at Gigabit PoE+ Sinyal Uzatma Cihazı<br> 1-port 802.3at PoE+ <-> 2-port 802.3af/at Gigabit PoE+ Extender
Fiyat : 3.278,16 TL(KDV Dahil)
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver

Fiziksel Port

- 1-port veri + güç girişi
- 2-port veri + güç çıkışı
  • 3-port 10/100/1000BASE-T Gigabit RJ45 arayüz

Power over Ethernet

- IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD destekler
- PoE girişi 30.8 watt güç beslemesi yapar
- IEEE 802.3af/IEEE 802.3at Power over Ethernet end-span PSE destekler
- Maksimum 2 IEEE 802.3af/802.3at cihaza güç beslemesi yapabilir
- Çıkışlara bağlı cihazlara 25 watt güç beslemesi yapabilir
- Elektrikle beslenen cihazları (powered device (PD)) otomatik algılar
  • 1-port veri + güç girişi
  • 2-port veri + güç çıkışı
  • PoE sinyalini ek olarak 100 metre ileriye taşır
  • Ethernet ve PoE güç sinyallerini uzaktaki cihazlara ulaştırır



Layer 2 Özellikler

  • 10/100/1000Mbps auto-negotiation ve auto MDI/MDI-X özelliğine sahip
  • 2K MAC addres kapasitesine sahip
  • 10K iumbo paket desteği
  • IEEE 802.1Q VLAN transparency
  • Store-and-Forward mod destekler
  • Full duplex çalışırken IEEE 802.3x akış kontrolü özelliği ve half duplex çalışırken backpressure özelliğine sahip
  • Otomatik adres öğrenme ve adres aging özelliği
  •  CSMA/CD protokolünü destekler



Şasi ve Kurulum

  • Harici güç kablosu gerektirmez
  • Metal şasi, kompakt, masaüstü boyut
  • Duvara monte edilebilir, Tak & Çalıştır özelliği
  • 0 ~ 50 derece C çalışma ısısına sahip



Interfaces
PoE IN 1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at PoE “Data + DC power” in
auto MDI/MDI-X, auto-negotiation RJ45 connector
PoE OUT 2 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE “Data + DC power” out
auto MDI/MDI-X, auto-negotiation RJ45 connector
Power over Ethernet
PoE Standard “PoE In” Port
IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD class 4 PD
Per “PoE Out” Port
IEEE 802.3at Power over Ethernet Plus end-span PSE
IEEE 802.3af Power over Ethernet end-span PSE
PoE Power Supply Type End-span (Type A)
PoE Power “PoE In” Port
52~56V DC, max. 30.8 watts
Per “PoE Out” Port
44~55V DC, max. 25 watts
Power Pin Assignment “PoE In” Port
1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)
Per “PoE Out” Port
1/2 (+), 3/6 (-)
Hardware Specifications
Data Rate 10/100/1000Mbps
MAC Address Table 2K
Data Buffer 2Mbits
Switch Architecture Store-and-Forward
Switch Fabric 6Gbps
Switch Throughput 4.46Mpps @ 64 bytes
Jumbo Frame 10KB
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
LED Indicators “PoE In” Port: PoE-in-Use x 1 (Orange), LNK/ACT x 1 (Green)
“PoE Out” Port 1: PoE-in-Use x 1 (Orange), LNK/ACT x 1 (Green)
“PoE Out” Port 2: PoE-in-Use x 1 (Orange), LNK/ACT x 1 (Green)
Protection ESD (Ethernet): 2KV (TBD)
Surge (EFT for power) : 2KV (TBD)
Enclosure Metal
Installation Wall mountable
Dimensions (W x D x H) 140 x 77 x 28 mm
Weight 234g
Power Requirements IEEE 802.3at compliant with voltage within 52V-56V DC
Power Consumption 1.6 watts/5.5BTU (System on with PoE input)
2.2 watts/7.5BTU (Ethernet full loading without PoE function)
36 watts/122.8BTU (Full loading with PoE function)
Network Cable 10BASE-T: 4-pair UTP Cat. 5 up to 100m (328ft)
100BASE-TX: 4-pair UTP Cat. 5 up to 100m (328ft)
1000BASE-T: 4-pair UTP Cat. 5e, 6, up to 100m (328ft)
EIA/TIA-568 100-ohm STP (100m, 328ft)
Standard Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standard Compliance IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3x Flow Control
Environment
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
