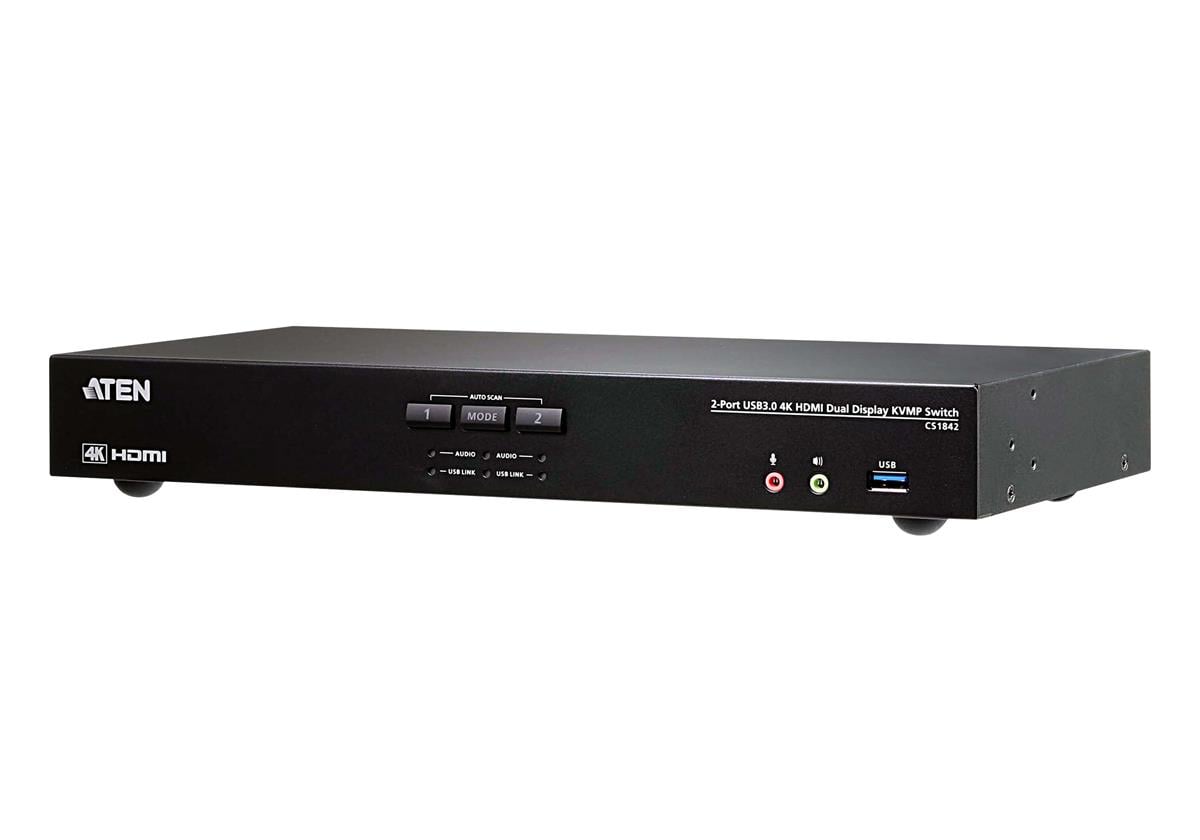

2-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch
Marka : Aten

2-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch

(ATEN-CS1842)
0.0
Toplam Stok Adedi : 2
2-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch
Fiyat : 24.541,92 TL(KDV Dahil)
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver

  • One USB keyboard, mouse and two HDMI monitors control two HDMI computers and share two USB peripherals
  • Supports Quad Display by connecting two Dual Display KVM switches
  • Video DynaSync™ – an exclusive ATEN technology that optimizes display resolution, speeds up switching between systems, and ensures that windows opened on an extended desktop will not revert to their default configurations on the main display when switching between ports
  • Supports superior video quality – 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
  • Computer selection via pushbuttons, hotkeys, mouse1, remote port selector, and RS-232 commands2
  • Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
  • Supports console keyboard emulation / bypass feature
  • Supports console mouse emulation / bypass feature
  • Independent switching of KVM, USB peripheral, and stereo audio focus3
  • Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
  • HDMI 2.0 compliant; HDCP 2.2 compliant
  • Supports HD audio3
  • Power on detection
  • Auto Scan Mode for monitoring all computers
  • Firmware upgradable

    Note:
    1. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice.
    2. Slide the DCC switch to the s position to allow the KVM switch to receive RS-232 commands via an RJ-45-to-DB-9 cable. Please refer to the CS1842/CS1844 user manual.
    3. HD audio through HDMI channel cannot be switched independently.



Computer Connections 2
Port Selection Hotkey, Pushbutton, Mouse, RS-232 Commands, Remote Port Selector
Connectors
Console Ports 2 x USB Type A Female
2 x HDMI Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
KVM (Computer) Ports 2 x USB3.1 Gen1 Type B Female (Blue)
4 x HDMI Female (Black)
2 x 3.5mm Audio Jack Female (Green)
2 x 3.5mm Audio Jack Female (Pink)
Daisy Chain Ports 1 x RJ-45 Female
Remote Port Selector 1 x 2.5mm Audio Jack Female
Power 1 x DC Jack
USB Hub 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
Switches
Selected 3 x Pushbutton
Station Selection 1 x Slide Switch
LEDs
On Line /Selected 3 (Orange)
USB Link 3 (Green)
Audio 3 (Green)
Emulation
Keyboard / Mouse USB
Video Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz
Scan Interval 1-99 Seconds (Default: 5 sec.)
Power Consumption DC12V:3.17W:57BTU
Environmental
Operating Temperature 0-40°C
Storage Temperature -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 1.60 kg ( 3.52 lb )
Dimensions (L x W x H) 33.50 x 16.05 x 4.40 cm
(13.19 x 6.32 x 1.73 in.)



Package Contents

  • 1x CS1842 2-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch
  • 4x HDMI 2.0 Cables
  • 2x USB 3.0 Cables
  • 2x Speaker Cables
  • 2x Microphone Cables
  • 1x Power Adapter
  • 1x Remote Port Selector
  • 1x User Instructions



https://www.aten.com/global/en/products/kvm/desktop-kvm-switches/cs1842/
