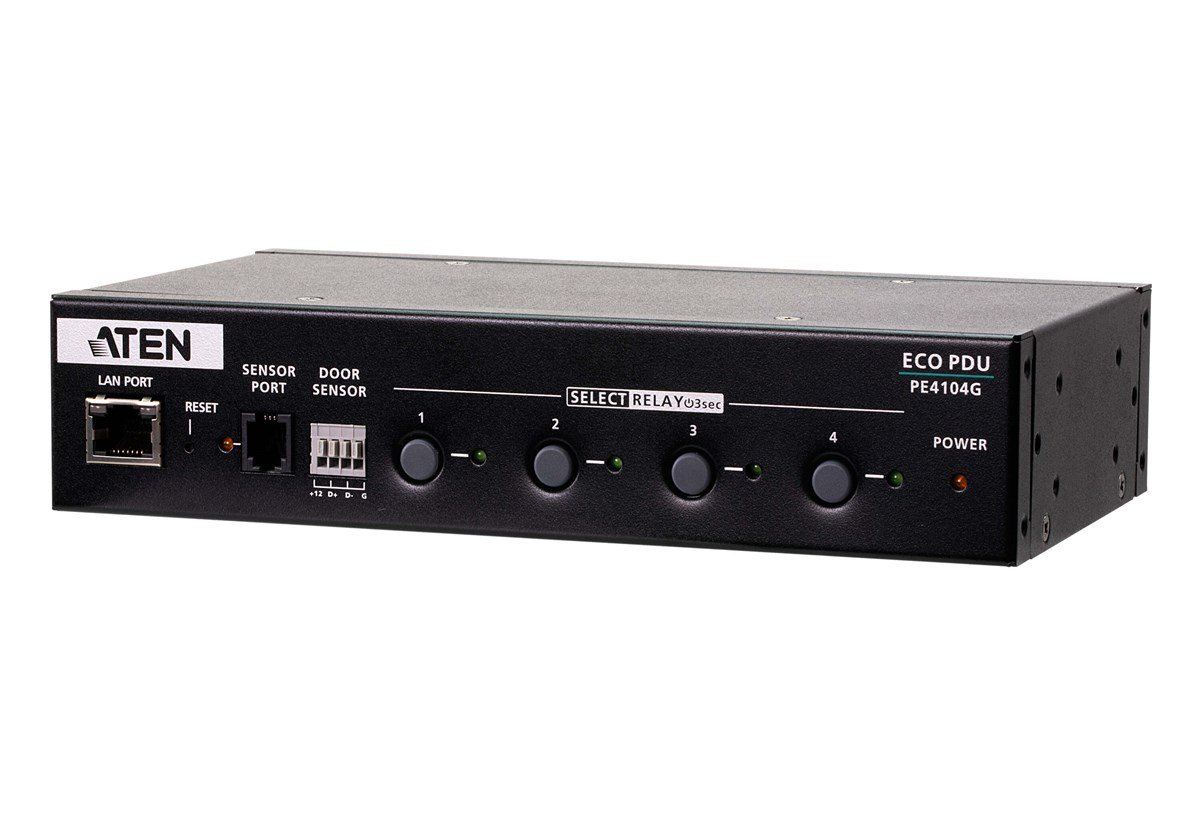

4-Outlet IP Control Box
Marka : Aten

4-Outlet IP Control Box

(ATEN-PE4104G)
0.0
Toplam Stok Adedi : 1
4-Outlet IP Control Box
Fiyat : 14.994,72 TL(KDV Dahil)
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
  • Power Distribution
    • Space saving slim form factor
    • IEC power outlet
    • Separates power for the unit's own power and its power outlets – user interface is still accessible even when an overload condition trips the device’s circuit breaker




  • Remote Access
    • Remote power control via TCP/IP and a built in 10/100 Ethernet port
    • Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, ARP, NTP, DNS, SNMP V1&V2&V3, auto sense, Ping, Telnet, Modbus (Over TCP IP)
    • Works with web-based eco DC software




  • Operation
    • Local and remote power outlet control (On, Off, Power Cycle) by individual outlets
    • Power-on sequencing – users can set the power on sequence and delay time for each port to allow equipment to be turned on in a proper order
    • Easy setup and operation via a browser-based user interface




  • Security
    • Two-level password security
    • Strong security features include password protection and advanced encryption technologies – TLS1.2
    • Remote authentication support: RADIUS
Electrical
Nominal Input Voltage 100 – 240 VAC
Maximum Input Current 10A Max
Input Frequency 50-60 Hz
Input Connection IEC C14
Input Power 2400VA(Max)
Outlet Type (4) IEC 320 C13
Nominal Output Voltage 100 – 240 VAC
Maximum Output Current (Outlet) 10A(Max)
Maximum Output Current (Bank) 10A(Max)
Maximum Output Current (Total) 10A(Max)
Breakers Yes(UL1077)
Metering No
Outlet Switching Yes
Power Consumption AC110V:3.1W:20BTU
AC220V:3.5W:22BTU
Physical Properties
Dimensions(W x D x H) 44*115*200mm
Weight 0.90 kg ( 1.98 lb )
Power Cord Length 3m
Environmental
Temperature (Operating / Storage) 0 – 50℃ / -20 – 60℃
Humidity (Operating & Storage) 0 – 80% RH, Non-Condensing
Compliance
EMC Verification CE-EMC
Safety Verification CE-LVD
