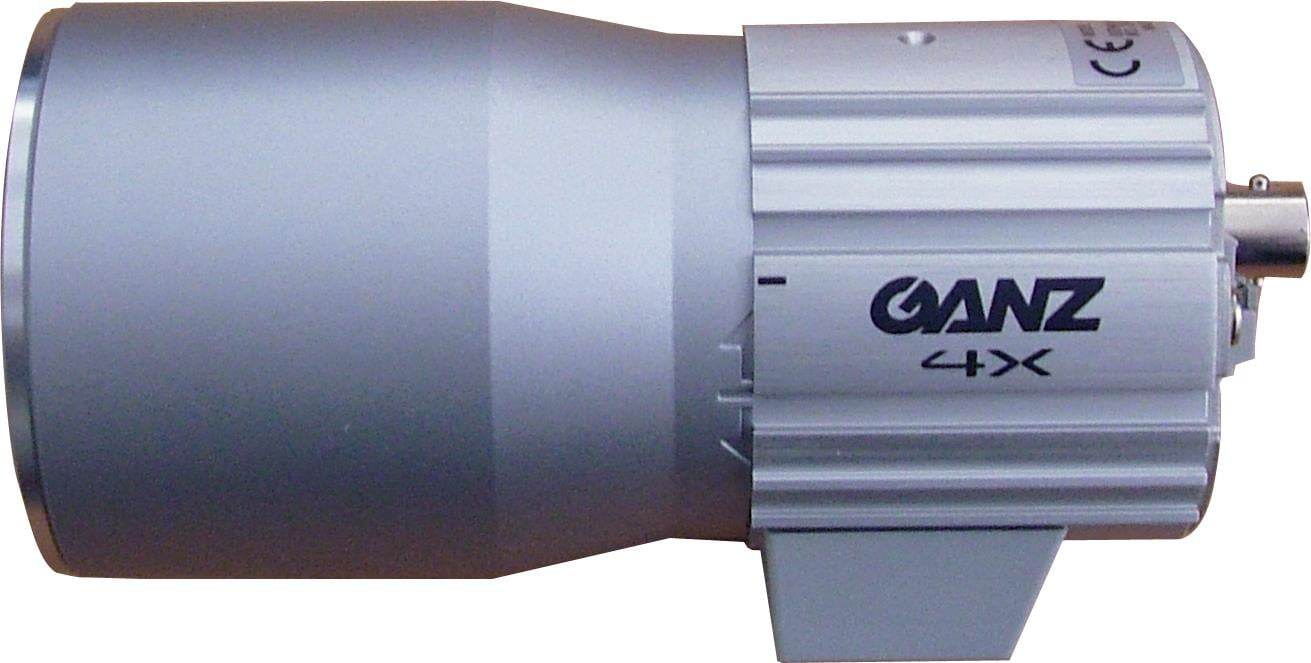

Ganz Colour High Resolution Spot Camera, 1/4 Inch CCD, 480 TV Lines, Sony Chipset, 1.5 Lux, Built-in Computar Varifocal Auto Iris, Unigue Spotlight Body Design, Varifocal 2.8-10mm Lens, 12VDC/24VAC Auto-Sensing Power, Light Weight (SLS-GANZ-ZC-L1210PHA)

- TV system: PAL
- Video output: 1.0 Vp-p, 75 Ohm
- Operating voltage: 12 VDC/24 VAC ± 10%, 50 Hz ± 1 Hz
- Power consumption (12 VDC): 2.0 W
- Power consumption (24 VAC): 2.1 W, 180 mA
- Picture recorder: 1/4 Inch IT CCD, 752 × 582 pixels
- Horizontal resolution: 480 TVlines
- Scanning system: 2:1 Interlace
- Scanning frequency (H/V): 15.625 kHz/50.0 Hz
- Iris: F1.2 - 360 (DC auto iris)
- Focal length: 2.8 - 10.0 mm
- Light sensitivity (50 IRE): 1.5 lux
- Light sensitivity (30 IRE): 0.75 lux
- Shutter control: voltage
- Maximum aperture ratio: 1:1.2
- Flicker reduction: automatic correction
- Electronic closure: 1/50 s (flicker reduction off), 1/120 s (flicker reduction on)
- Signal to noise ratio: > 50 dB (min. distortion)
- Automatic intensification: -
- Gamma characteristics: 0.45
- Synchronisation: internal/mains phase
- Vision angle (D/H/V): 105.8°~27°/78.2°~21.6°/55.8°~16.2°
- Operating environment: –10 ... +50 °C (< 85% rel. humidity, non-condensing)
- Storage conditions: –20 ... +60 °C (< 95% rel. humidity, non-condensing)
- Weight: Approximately 200 g
- Dimensions (W x H × D): 55 x 61 × 122 mm

Note:
- 12 VDC/24 VAC should be provided additionally
- Optional mounting brackets
