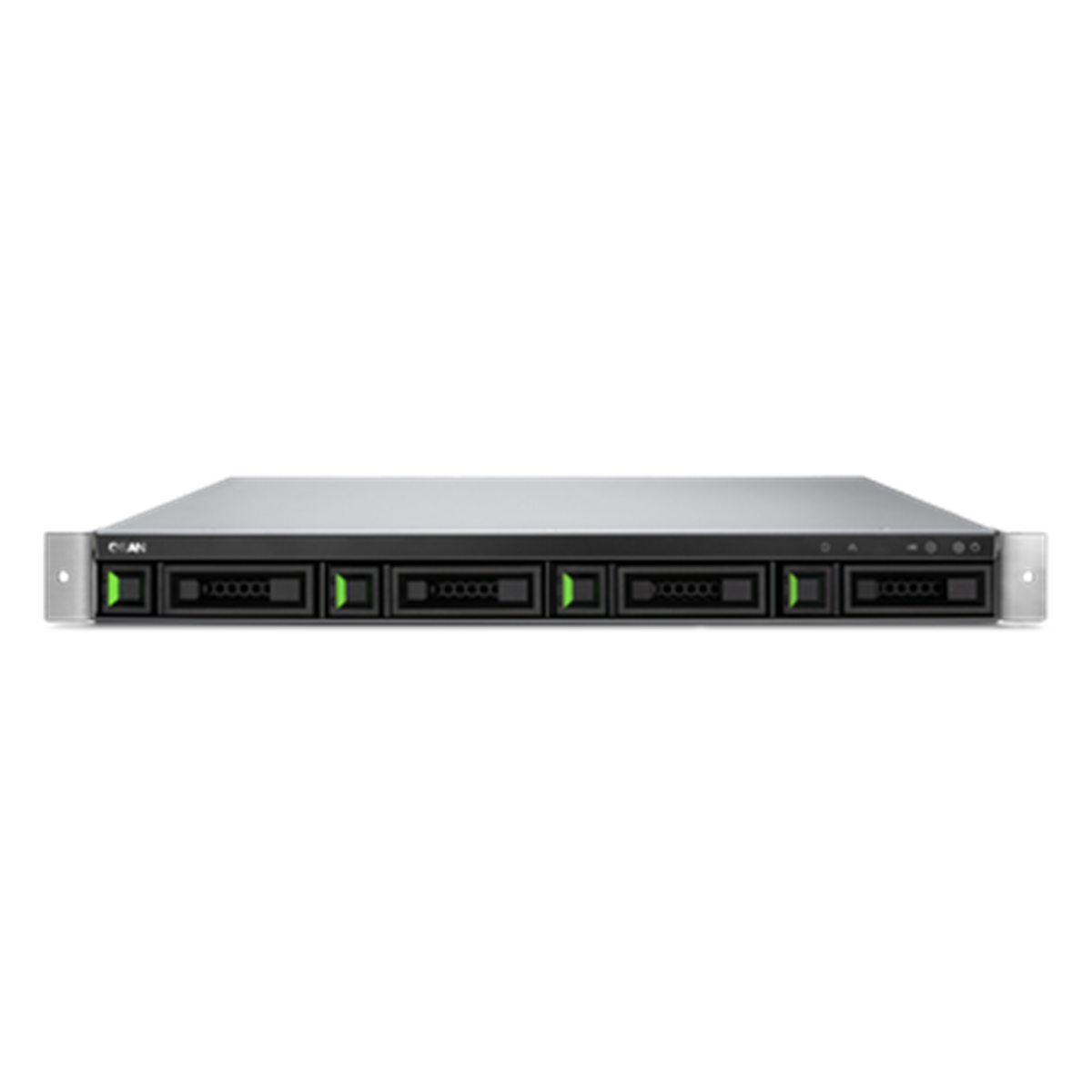

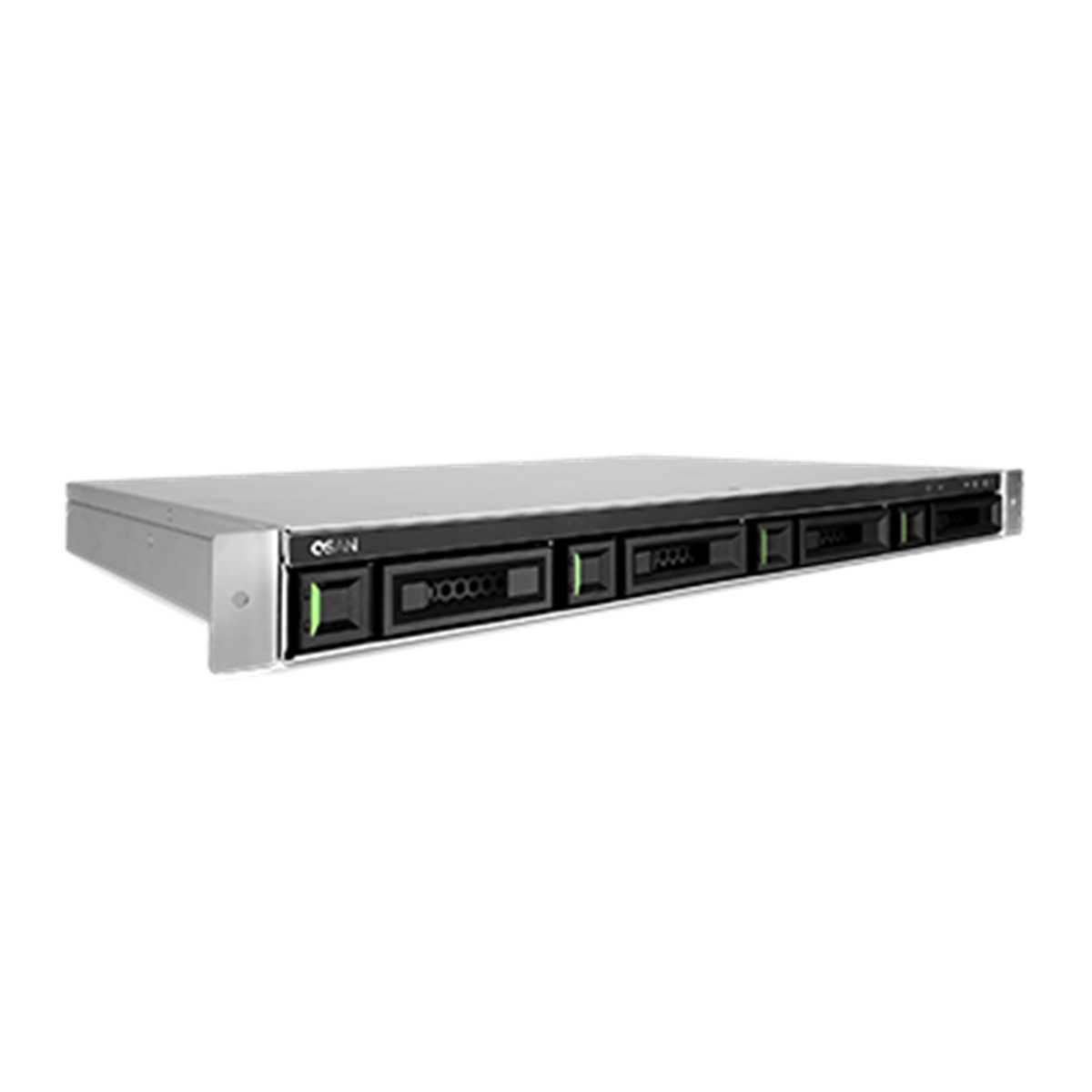

QSAN XCUBENAS XN3004R 4 BAY RACKMOUNT NAS QSAN
QSAN XCUBENAS XN3004R 4 BAY RACKMOUNT NAS QSAN
Marka : QSAN

QSAN XCUBENAS XN3004R 4 BAY RACKMOUNT NAS

(NAS.140.4415)
0.0
Toplam Stok Adedi : 0
QSAN XCUBENAS XN3004R 4 BAY RACKMOUNT NAS
Fiyat : 57.135,00 TL(KDV Dahil)
Ürün stoklarımızda kalmamıştır.
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver

Qsan XCubeNAS XN3004R Özellikler

QSAN XN3004R, 1U basit, güçlü ve sitil sahibi 4 yuvalı kabin montajı yapılabilen bir NAS cihazıdır. Intel Atom Processor, 4GB DDR3L RAM (Max 8GB) ve QSM İşletim sistemi ile maharetli ve çok hızlı.

Hardware Specifications



Architecture Single Controller
Storage OS QSM 3
CPU
Processor Intel®
CPU Architecture 64-bit
CPU Frequency Dual-Core
Memory
System Flash 8GB USB DOM
Memory Module Pre-installed 4GB DDR3L SO-DIMM
Total Memory Slots 1
Memory Expandable up to 8GB
Notes -
Storage
Drive Bays

3.5" Slot x 4
Maximum Drive Bays with Expansion Unit -
Compatible Drive Type

3.5" SATA HDD

2.5" SATA HDD

2.5" SATA SSD

M.2 SSD
Drive Interface

SATA 6Gb/s (backward compatible with SATA 3Gb/s)
Maximum Internal Raw Capacity 64TB
Maximum Raw Capacity with Expansion Units -
Hot Swappable Drive VAR
Notes
  • For more information, please refer to compatibility matrix and hardware manual
  • Maximum internal raw capacity= 16 TB drive x 4
  • Capacity may vary by RAID types
  • M.2 SSD can be installed
External Port
USB 2.0 Port 2 (Rear)
USB 3.0 Port -
HDMI Port -
Others Console Port x 1
Notes -
Connectivity Port
1GbE RJ45 LAN Port 2 (Onboard)
10GbE RJ45 LAN Port 2 (Option:RHBE10R2)
10GbE SFP+ LAN Port 2 (Option:XN-E1002)
Thunderbolt 3 -
16Gb SFP+ Fibre Channel -
Notes

For more information, please refer to accessory book

Please refer to the section below for expansion slot specification
Expansion Port
12Gb/s SAS Wide Port -
Notes -
PCIe Expansion
Gen3x8 Slot -
Gen3x4 Slot -
Notes Gen2x8 Slot x1, For more information, please refer to hardware manual
Host Card Expansion
Gen3x8 Slot -
Gen2x4 Slot -
Notes -
Appearance
Dimension (H x W x D) (mm) 44 x 438 x 370
Chassis Form Factor 12″ Rackmount 1U 4 Bay
Net Weight (kg) 5.97
Gross Weight (kg) 9.9
Notes -
Memory Protection
Cache-to-Flash Module -
Battery Backup Module + Flash Module -
Notes -
Others
System Fan 40mm x 40mm x 2 pcs
Replaceable System Fan -
Power Recovery -
Scheduled Power On/Off -
Wake on LAN/WAN -
Power Supply Unit / Adapter FLEX ATX 200W
Redundant Power Supply -
AC Input Power Voltage 100V-240V
Power Frequency 50-60 Hz, Single Phase
Power Consumption 105 W (Access)
72 W (HDD Hibernation)
British Thermal Unit 360 BTU/hr (Access)
244 BTU/hr (HDD Hibernation)
LCM Support VAR
Notes -
Environment Temperature
Operating Temperature 0 to 40°C
Storage Temperature -10 °C to 50 °C
Operating Relative Humidity 20% to 80% non-condensing
Non-operating Relative Humidity 10% to 90%
Notes -
Certification
Certifications

CE

FCC

BSMI

VCCI

RCM
Notes -
Warranty
Standard Warranty 3 years
Notes -
