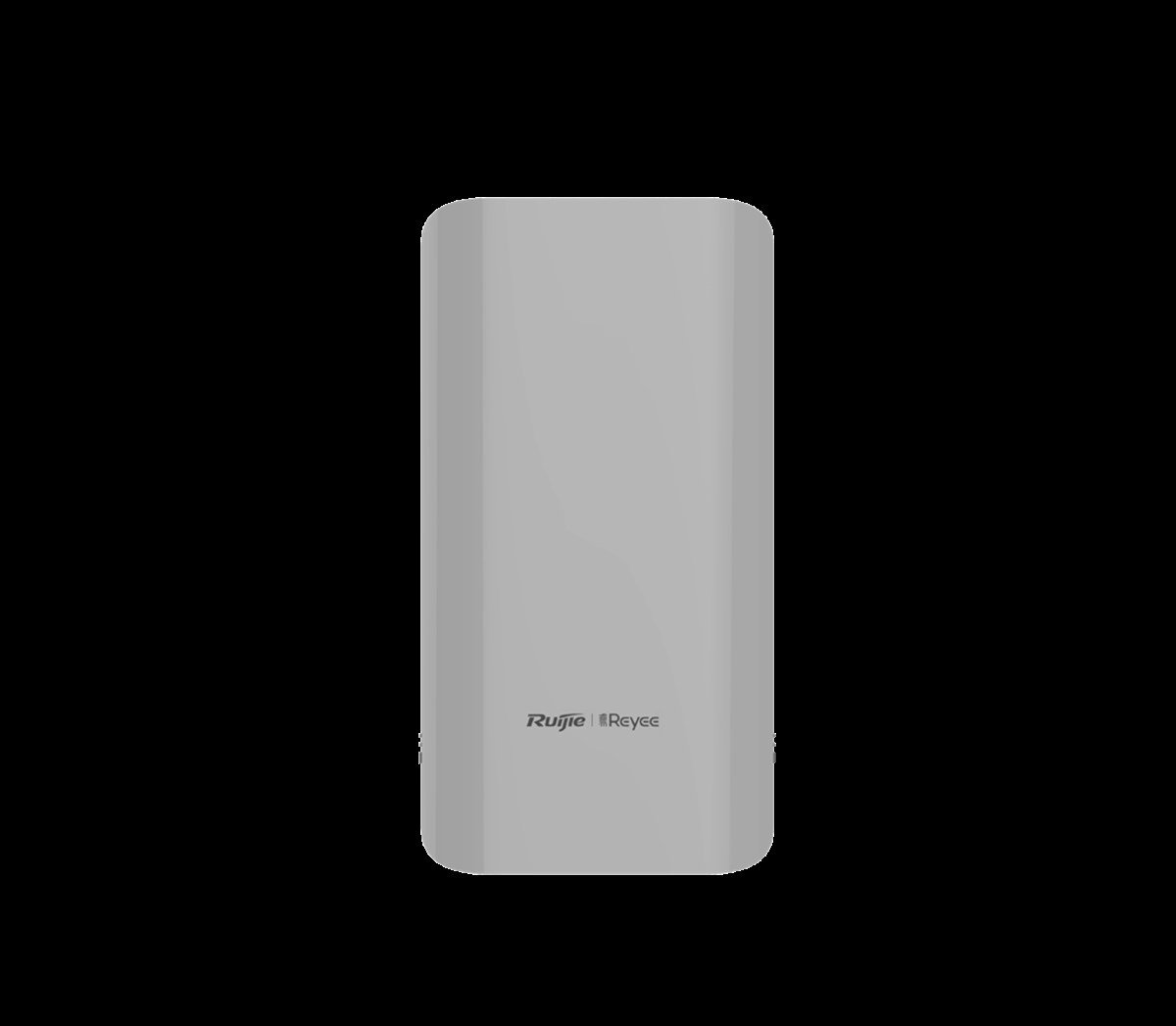

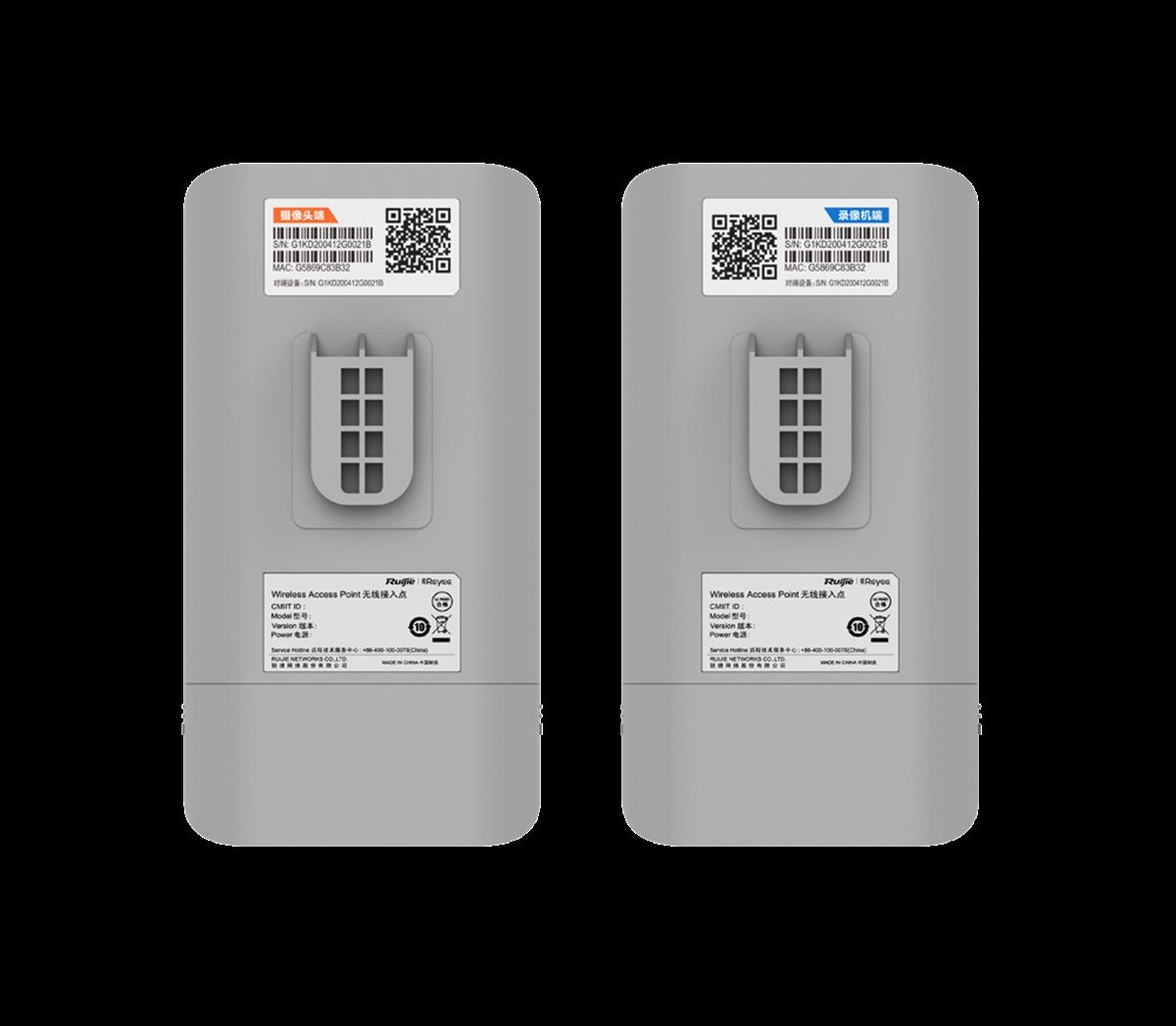

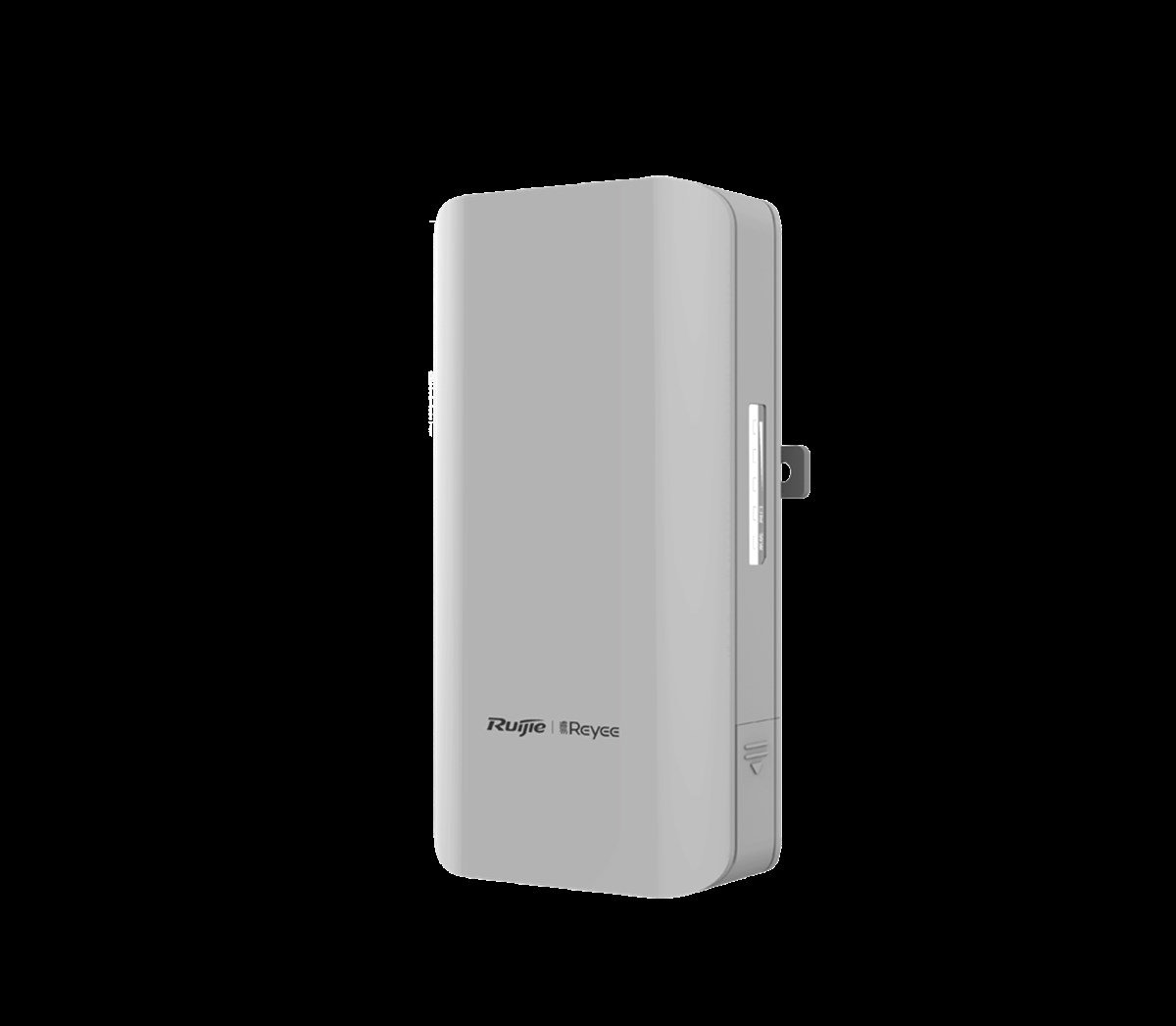

Model
RG-EST310
Hardware Specifications
RAM/ Flash
64MB/8MB
Radio
Dual-stream single-band 2×2
Operating Band
802.11a/n/ac:5.725~5.850GHz
Antenna
Built-in directional antennas, horizontal: 60°, vertical: 30°, gain: 10dBi
Spatial Streams
2
Maximum Throughput
Up to 867Mbps at 5GHz
Transmit Power
≤250mW
Dimensions
147mm(D)×76mm(W)×37mm(H) (Dimensions per device)
(Same size for the transmitter and receiver,
H: height of the device excluding the mounting kits)
Weight
0.35kg

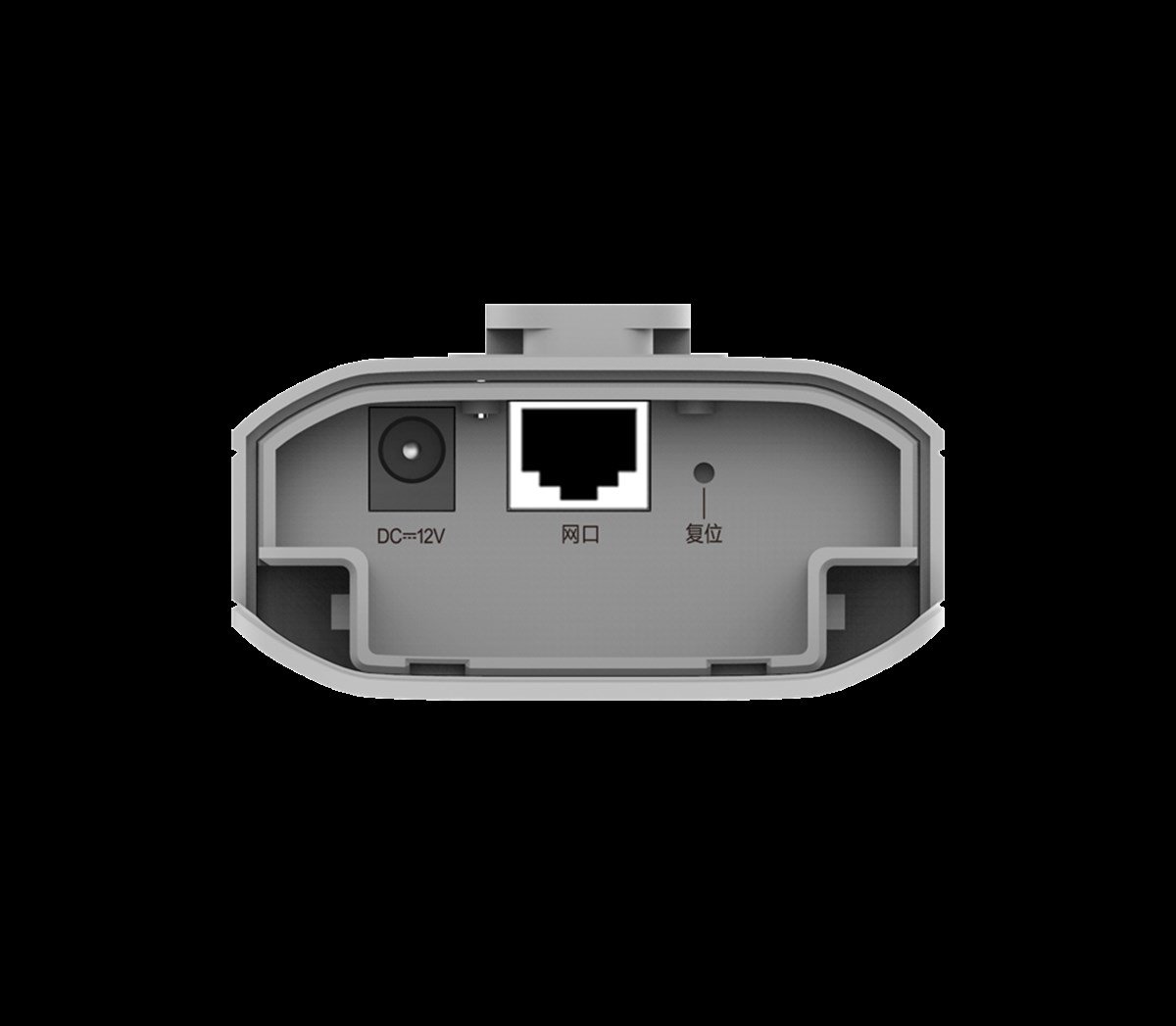

Ports
1 10/100Base-T Ethernet port, supports 24VDC passive PoE
1 DC port, supports 12VDC power supply
Hardware Button
1 reset button
Status Indicators
System indicator: 1
Port indicator: 1
Bridge signal strength indicators: 3
Power Supply
Support 12VDC power supply and 24VDC passive PoE
Power Consumption
<5W
Environment
Operating temperature: -30°C~50°C
Storage temperature: -40°C~70°C
Operating humidity: 5% to 95% (non-condensing)
Storage humidity: 5% to 95% (non-condensing)

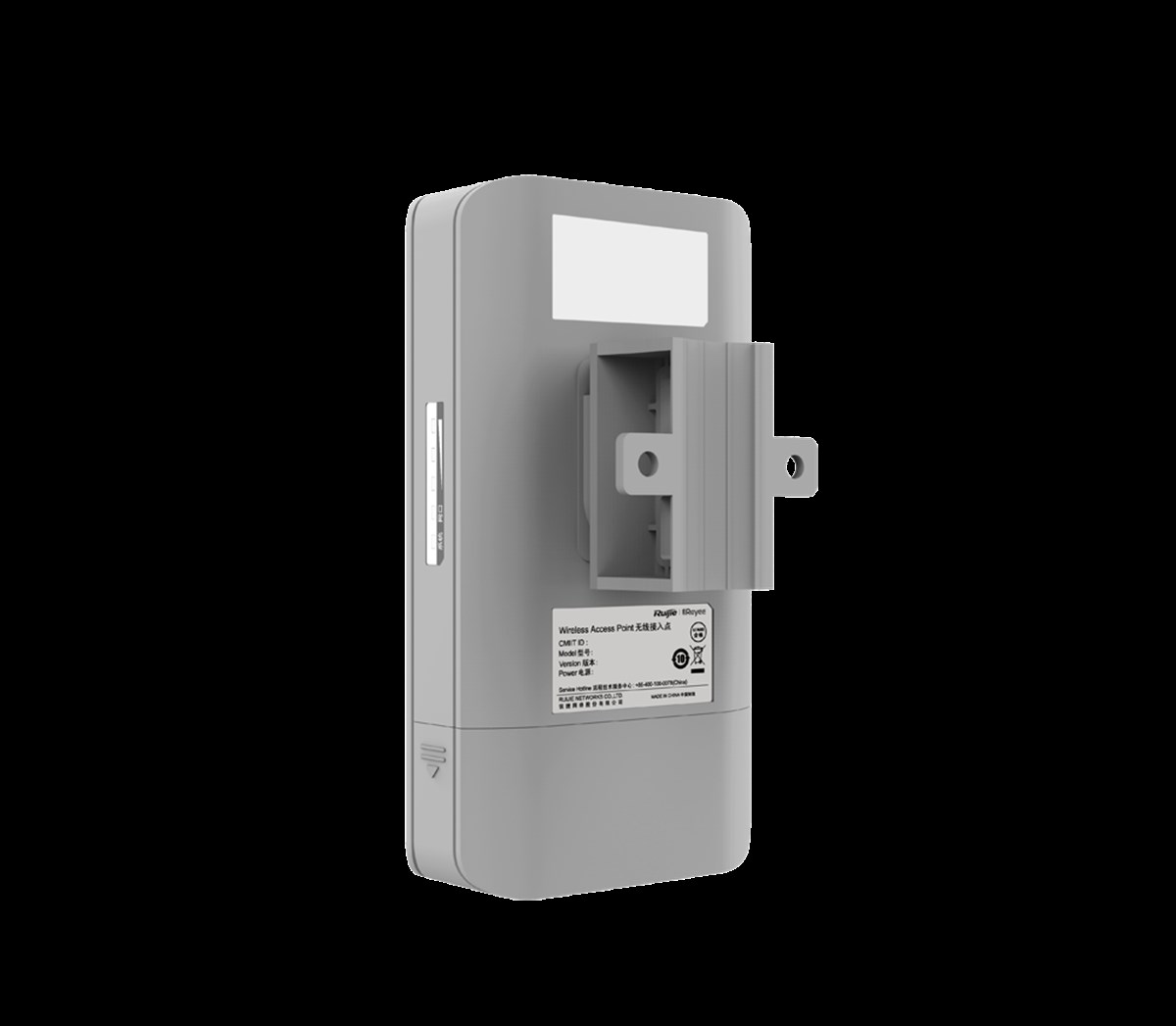

Installation
Wall-mounted/ Pole-mounted (straps provided)
IP Rating
IP65
Lightning Protection
4KV
Radio Standard
SRRC certification
Warranty
3 Years
Software Features
Zero-Touch Configuration
Support Ruijie Cloud App remote configuration
Automatic Bridging
Support
The recorder-end and camera-end are automatically paired for bridging by default
Device Configuration and Management
Support App/Web monitoring and management
QR Code Login
Users can log in to the device configuration interface by scanning the QR code of the device using the app
Self-healing
Automatic restart upon equipment failure
Automatic Channel Adjustment
Automatically adjust the channel upon power-on
Camera Support Reference:
Antenna Polarization
Distance (Meters)
RSSI
(dBm)
Negotiate speed
(Mbps)
Port Speed
3MP
H.265
(Units)
4-5MP
6-7MP
10dBi
H: 60°
V: 30°
100
-52
400
90
16
10
7
500
-65
80
1000
-68
240
2000
-75
120
40
6
4
3
