| Model |
RG-RAP2200(E) |
RG-RAP2200(F) |
| Hardware specifications |
| Radio |
Dual-stream dual-band |
| Protocol |
Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n |
| Operating Bands |
802.11b/g/n ：2.4G ~ 2.4835GHz
802.11a/n/ac ： 5G：5.150～5.350GHz，5.725～5.850GHz |
| Antenna |
Array antennas（2.4G: 2dBi，5G: 2dBi） |
| Spatial Streams |
2.4G 2x2MIMO 5G 2x2MIMO |
| Max Throughput |
Up to 400Mbps at 2.4G
Up to 867Mbps at 5G
1.267Gbp per AP |
| Modulation |
OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and [email protected]/11Mbps
MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM |
| Receive Sensitivity |
11b: -91dBm (1Mbps), -88dBm (5Mbps), -85dBm (11Mbps)
11a/g: -89dBm (6Mbps), -80dBm (24Mbps), -76dBm (36Mbps), -71dBm (54Mbps)
11n: -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15
11ac HT20: -83dBm (MCS0), -57dBm (MCS9)
11ac HT40: -79dBm (MCS0), -57dBm (MCS9)
11ac HT80: -76dBm (MCS0), -51dBm (MCS9) |
| Maximum Transmit Power |
5.725～5.850GHz：≤20dBm (EIRP)
5.150～5.350GHz：≤20dBm (EIRP)
2.4～2.4835GHz：≤20dBm (EIRP) |
| Adjustable Power |
1dBm |
1dBm |
| Dimensions |
194mm×194mm×35mm (excluding mounting kits) |
194mm×194mm×35mm (excluding mounting kits) |
| Weight |
0.45kg (excluding mounting kits) |
0.45kg (excluding mounting kits) |

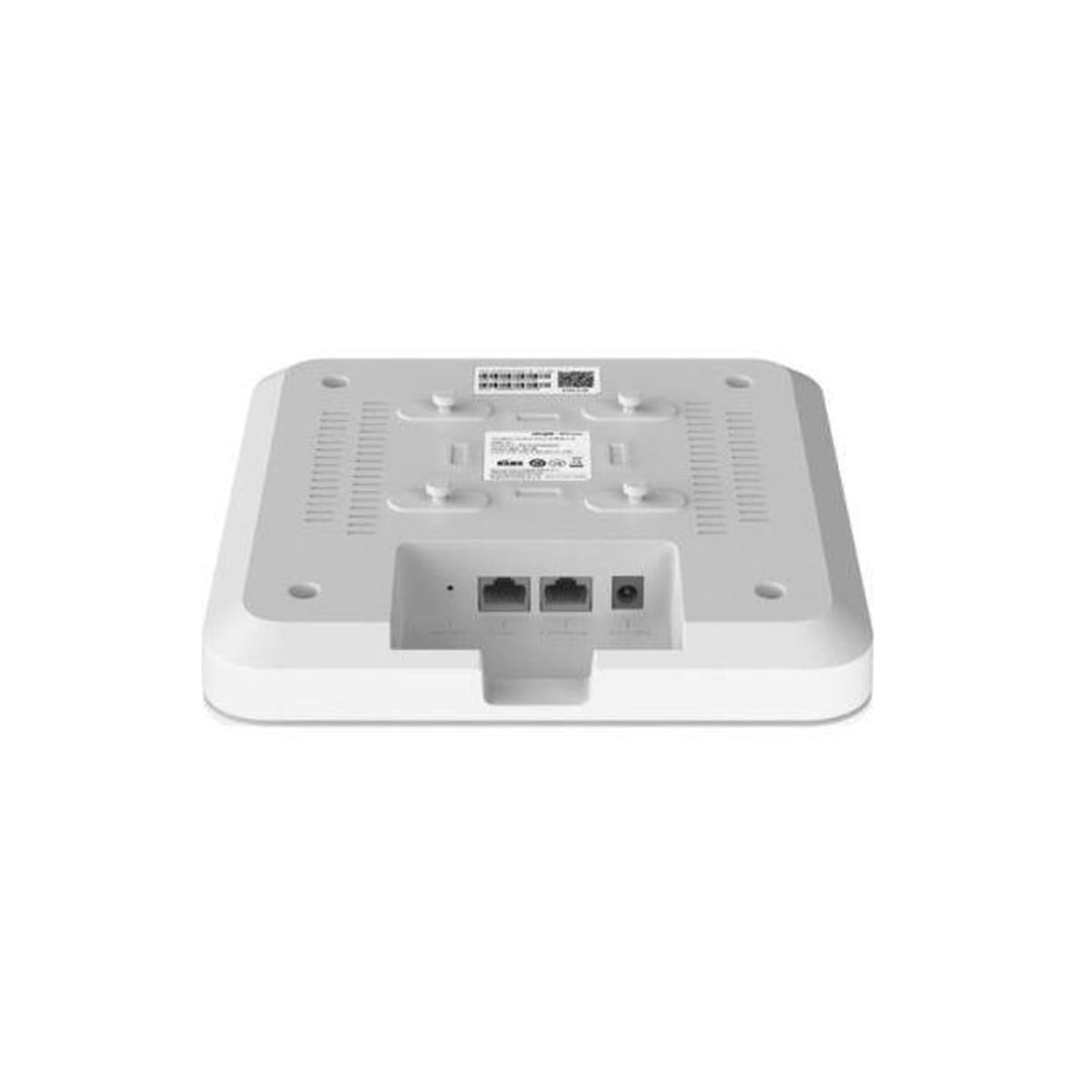

| Service Ports |
2 10/100/1000Base-T Ethernet ports,
PoE/LAN1 port supports PoE |
2 10/100Base-T Ethernet ports,
PoE/LAN1 port supports PoE |
| Management Port |
NA |
NA |
| Power Supply |
Power Supply Single indicator (green light) |
| Power Consumption |
Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory) 802.3af/802.3at PoE |
| Environment |
≤ 12.95W |
| Operating temperature: 0°C～40°C |
| Storage temperature: -40°C～70°C |
| Operating humidity: 5％～95％（non-condensing） |
| Installation |
Storage humidity: 5％～95％（non-condensing） |
| Safety Standard |
GB4943, IEC 60950-1 |
| EMC Standard |
GB9254，EN301 489，EN50155，EN50121，EN55032，EN61000，EN55035 |
| Vibration Standard |
IEC61373 |
| Radio Standard |
SRRC certification, EN300 328, EN301 893 |
| MTBF |
>400000H |
>400000H |
| Software Features |
| Operating Mode |
AP mode and routing mode |
| WLAN |
Maximum number of clients: 110 |
| Recommended number of clients: 40 (8 at 2.4GHz, 32 at 5GHz) |
| Up to 8 SSIDs |
Support SSID hiding
Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID |
| SSID-based and radio-based STA limit |
| Support Layer 2 user isolation |
| Roaming |
Support Layer 2 and Layer 3 roaming |
| Security |
Support PSK authentication |
| Support static blacklist and whitelist |
| Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption |
| Routing |
Support static IP address, DHCP, PPPoE Dial Up |
| Management and maintenance |
Support unified networking of all network equipment
Support local or remote management with Ruijie Cloud app
Support local management with web
Support remote management with Ruijie Cloud platform |
| Platform management features |
Automatic RF adjustment via the platform |
| Unified configuration via the platform |
| Unified monitoring via the platform |
