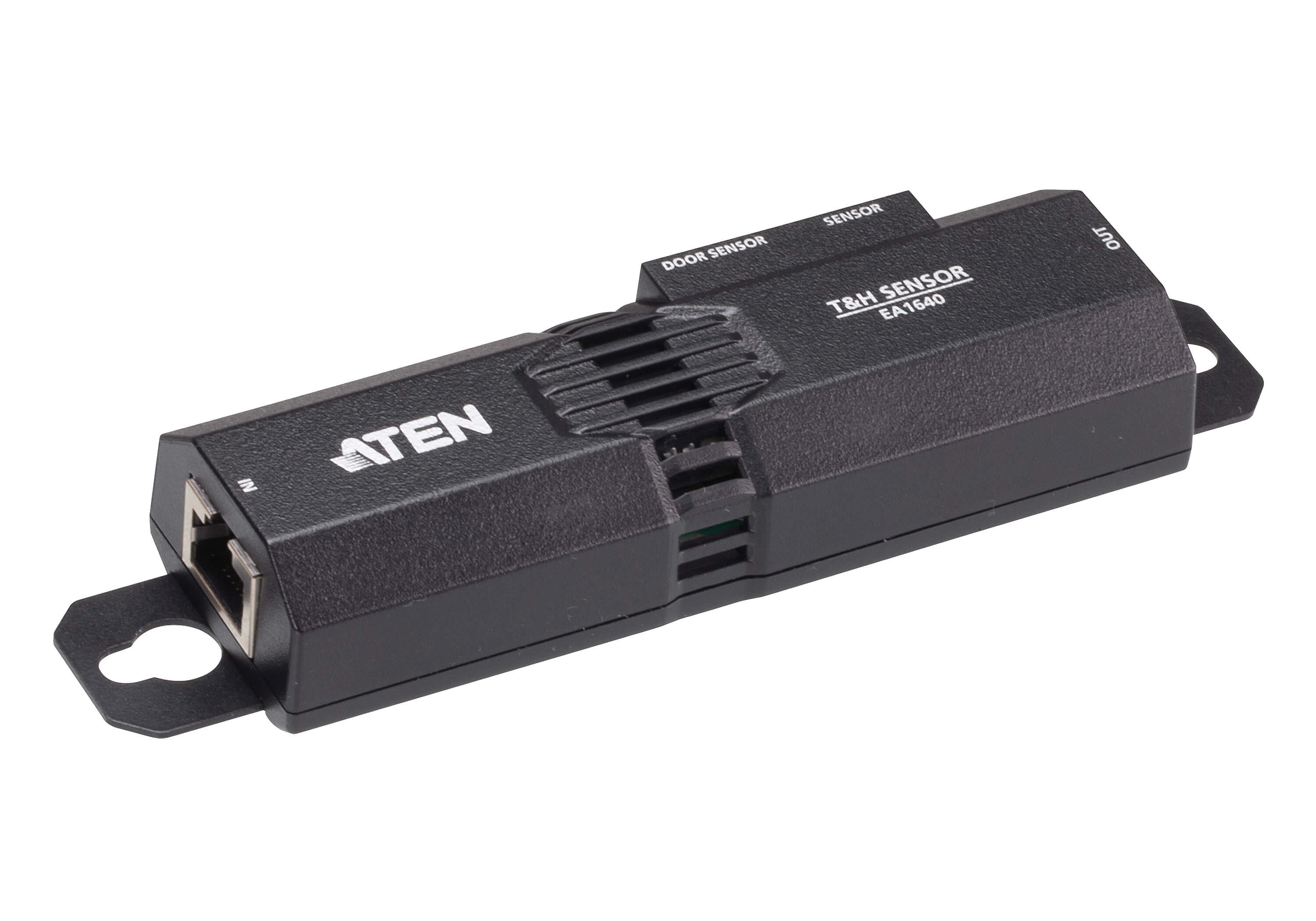

Temperature & Humidity Sensor
Marka : Aten

Temperature & Humidity Sensor

(ATEN-EA1640)
0.0
Toplam Stok Adedi : 1
Temperature & Humidity Sensor
Fiyat : 4.358,58 TL(KDV Dahil)
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver

  • A humidity and temperature measuring solution for ATEN PG PDU series
  • Precise relative humidity accuracy: ±7.5 % RH, 30 – 70 % RH; ±15 % RH, 15 – 40 % RH, 70 – 90 % RH
  • Highly accurate temperature measuring: ±1 °C (Max.), 10 – 40 °C; ±1.5 °C (Max.), –10 – 10 °C, 40 – 75 °C
  • Supports up to 8 daisy-chained devices
  • Multiple interfaces to broaden applications –
    – 1 x RJ-45 input port, 1 x RJ-45 output port, and 1x RJ-11input port support connection with PG PDU series and EA1140 / EA1240 / EA1340 environmental sensors
    – 1 x terminal block supports EA1440 / EA1441 / EA1442 door sensor and EA1540 capacitive leakage sensor
  • Meets flexible installation purposes –
    – Included 1.5 m RJ-45 cable for ideal location placement
    – Contains a magnet for sticking to metallic surfaces
    – Included rack mount kits enable quick installation inside racks
  • Overload protection prevents overheating of the protected equipment
  • LED illumination is visible through the transparent enclosure
  • Prevents device malfunctions thanks to early detection in case of overheating / excessive humidity
  • Suitable for applications that require precise measuring, such as server rooms, data centers, hospitals, smartfactories, and green offices



Electrical
Environment Sensor Ports 1 Port Terminal Block for Door Sensor (EA1440/EA1441/EA1442)/ Capacitive Leakage Sensor (EA1540)
1 Port RJ-11 for Original Temperature Sensor (EA1140/EA1240/EA1340)
Measurement
Range Temperature: –10 to +75 °C
Humidity: 0 to 100%
Accuracy Temperature:
±1°C (max), 10 to 40 °C
±1.5°C (max), –10 to 10 °C, 40 to 75 °C

Humidity:
±7.5% RH, 30–70% RH
±15% RH, 15–40% RH, 70–90% RH
Power Consumption DC12V:0.273W:1
Environmental
Humidity (Operating & Storage) 0 – 80% RH, Non-Condensing
Temperature (Operating / Storage) –10 to 75 °C / -20 – 70℃
Physical Properties
Dimensions (L x W x H) 10.44 x 3.57 x 2.14 cm
(4.11 x 1.41 x 0.84 in.)
Weight 0.05 kg ( 0.11 lb )
Cable Length 1.5M(RJ45+RJ45) round cable
Housing Black Polycarbonate
Compliance
EMC Verification EMC/FCC, Class A
Safety Verification By Request
LEDs
LED Indicator [Solid]: EA1640 is in working mode
[Fast Blinking (for 2 minutes)]: EA1640 receives the command “FindMe”.
[Slow Blinking (for 10 seconds)]: Over-current protection (OCP) is triggered, and the sensor(s) connected to EA1640 is going to power off.
[Slow Blinking]: Firmware upgrade of EA1640 is in progress.



Package Contents

  • 1 x Temperature & Humidity Sensor
  • 2 x rack mount kits
  • 1 x RJ45 Cable
  • 1 x User Instructions
