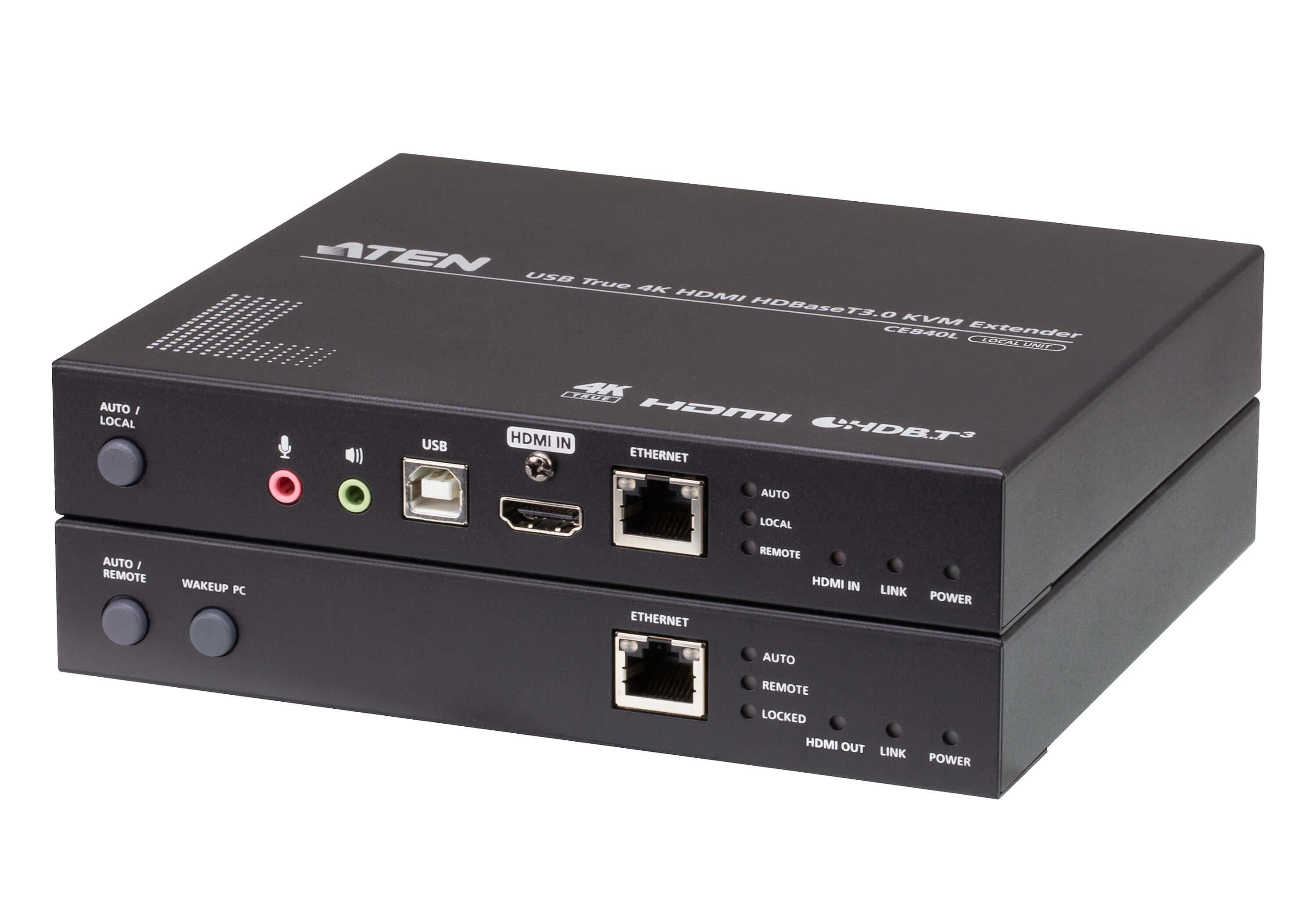

USB True 4K HDMI HDBaseT 3.0 KVM Extender (4K@100m)

USB True 4K HDMI HDBaseT 3.0 KVM Extender (4K@100m) (ATEN-CE840)

0.0
Marka : Aten
Fiyat : 54.898,56 TL(KDV Dahil)
Toplam Stok Adedi : 1

USB True 4K HDMI HDBaseT 3.0 KVM Extender (4K@100m)

Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
  • HDBaseT 3.0 – supports True 4K HDMI, audio, RS232, Ethernet, and USB signal transmission across a long distance via a single Cat 6A cable (ATEN 2L-2920 Cat 6A Cable recommended) or above with no compression and zero latency
  • Superior video quality – supports HDR10+ and video resolutions up to True 4K (3840 x 2160 @ 60 Hz 4:4:4 and 4096 x 2160 @ 60 Hz 4:4:4) over 100 m
  • Dual console operation – control the system via the USB keyboard, mouse and HDMI monitor consoles installed on both the local and remote ends
  • Active console selectable via the pushbutton on the remote unit and local unit - enables USB-based signal control from either the remote or local end, with LEDs indicating the USB control mode
  • Flexible 4 x USB 2.0 extension – each of the remote unit and the local unit contains 2 ports for USB keyboard and mouse connection and 2 ports for other USB peripheral connection
  • Supports individual stereo audio and HDMI audio formats including LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
  • HDCP2.3 and 2.2 compliant
  • Supports widescreen formats
  • Built-in 8KV/15KV ESD protection
  • Firmware upgradable
  • No software or driver installation required
  • Rack-mountable



Package Contents

  • 1x CE840 USB True 4K HDMI HDBaseT 3.0 KVM Extender (Local Unit)
  • 1x CE840 USB True 4K HDMI HDBaseT 3.0 KVM Extender (Remote Unit)
  • 1x HDMI cable
  • 1x microphone cable
  • 1x speaker cable
  • 1x USB Type-A to USB Type-B cable
  • 2x mounting kits
  • 8x foot pads
  • 2x power adapters and power cords
  • 1x user instructions




Input Resolutions 640 x 480 @ 60/67/72/75 Hz 720p 60 Hz
800 x 600 @ 56/60/72/75 Hz 1080i 60 Hz
1024 x 768 @ 60/70/75 Hz 640 x 480 60Hz (4:3)
1280 x 800 @ 60 Hz 576p 50 Hz (4:3)/(16:9)
1280 x 1024 @ 60/75 Hz 720p 50 Hz
1400 x 1050 @ 60 Hz 1080i 50 Hz
1440 x 900 @ 60 Hz 1080p 24/25/30/50 Hz
1600 x 1200 @ 60 Hz 3840 x 2160p 24/25/30/50/60 Hz
1680 x 1050 @ 60 Hz 4096 x 2160p 24/25/30/50/60 Hz
1920 x 1080 @ 60/120 Hz 3840 x 2160p 50 Hz 4:2:0/60 Hz 4:2:0
1920 x 1200 @ 60 Hz 4096 x 2160p 50 Hz 4:2:0/60 Hz 4:2:0
1920 x 1200 @ 60 Hz (Reduced Blanking) 1920 x 1080 @ 144 Hz
1080p 60 Hz 2560 x 1440 @ 144 Hz
480p 60 Hz (4:3) / (16:9)
Function CE840L CE840R
Connectors
Console Ports 1 x HDMI (Female, Black)
4 x USB Type A (Female, White) *
1 x Mini Stereo Jack (Female, Green)
1 x Mini Stereo Jack (Female, Pink)

* 2 ports x USB for Keyboard & Mouse use, 2 ports x USB for other USB2.0 peripherals, DO NOT mix and match		 1 x HDMI (Female, Black)
4 x USB Type A (Female, White) *
1 x Mini Stereo Jack (Female, Green)
1 x Mini Stereo Jack (Female, Pink)
1 x GbE (RJ-45 Female, Black)

* 2 ports x USB for Keyboard & Mouse use, 2 ports x USB for other USB2.0 peripherals, DO NOT mix and match
KVM Ports 1 x HDMI (Female, Black)
1 x USB Type B (Female, White)
1 x Mini Stereo Jack (Female, Green)
1 x Mini Stereo Jack (Female, Pink)
1 x GbE (RJ-45 Female, Black)		 N/A
RS-232 1 x DB-9 Female (Black) 1 x DB-9 Male (Black)
Power 1 x DC Jack (Black) 1 x DC Jack (Black)
Unit To Unit 1 x RJ-45 Female (Black, HDBaseT) 1 x RJ-45 Female (Black, HDBaseT)
Video
Max. Data Rate 18Gbps (6Gbps per lane) 18Gbps (6Gbps per lane)
Max. Pixel Clock 600 MHz 600 MHz
Compliance HDMI (Deep Color, 4K/60Hz); 4K HDR+
HDCP2.3 Compatible
Consumer Electronics Control (CEC)*

*The CEC signals are only bypassed from the Local unit to the remote unit and do not support local HDMI console output.		 HDMI (Deep Color, 4K/60Hz); 4K HDR+
HDCP2.3 Compatible
Consumer Electronics Control (CEC)
Max. Resolution 4096 x 2160 @ 60Hz (4:4:4)
3840 x 2160 @ 60Hz (4:4:4)		 4096 x 2160 @ 60Hz (4:4:4)
3840 x 2160 @ 60Hz (4:4:4)
Max. Resolutions / Distance 4K x 2K @ 60Hz (4:4:4) up to 100m (HDBaseT3 Certified Cat 6a U/FTP cable or above / ATEN 2L-2920 Cat 6a cable)

4K x 2K @ 30Hz (4:4:4) up to 50m (HDBaseT certified Cat6 cable / ATEN 2L-2910 cable)		 4K x 2K @ 60Hz (4:4:4) up to 100m (HDBaseT3 Certified Cat 6a U/FTP cable or above / ATEN 2L-2920 Cat 6a cable)

4K x 2K @ 30Hz (4:4:4) up to 50m (HDBaseT certified Cat6 cable / ATEN 2L-2910 cable)
LEDs
Power 1 (Green) 1 (Green)
Link 1 (Orange) 1 (Orange)
Video 1 x HDMI IN (Orange) 1 x HDMI OUT (Orange)
Console Status 3 x Local USB Keyboard/Mouse Authority Indicator (Green) 3 x Remote USB Keyboard/Mouse Authority Indicator (Green)
Switches
Long Reach Mode Switch 1 x Slide Switch (Reserved) 1 x Slide Switch (Reserved)
Firmware Upgrade 1 x Slide Switch 1 x Slide Switch
Pushbuttons
Wakeup button N/A 1 x Pushbutton
Operating Mode Selection 1 x Local USB Keyboard/Mouse Authority switch 1 x Remote USB Keyboard/Mouse Authority switch
Power Consumption DC12V:7.36W:60BTU DC12V:7.37W:60BTU
Environmental
Operating Temperature 0-40˚C 0-40˚C
Storage Temperature -20-60˚C -20-60˚C
Humidity 0-80% RH, Non-condensing 0-80% RH, Non-condensing
Physical Properties
Housing Metal Metal
Weight 0.82 kg ( 1.81 lb ) 0.81 kg ( 1.78 lb )
Dimensions (L x W x H) 17.82 x 15.60 x 2.88 cm
(7.02 x 6.14 x 1.13 in.)		 17.82 x 15.60 x 2.88 cm
(7.02 x 6.14 x 1.13 in.)
Note Long reach mode reserved for future improvement Long reach mode reserved for future improvement
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
